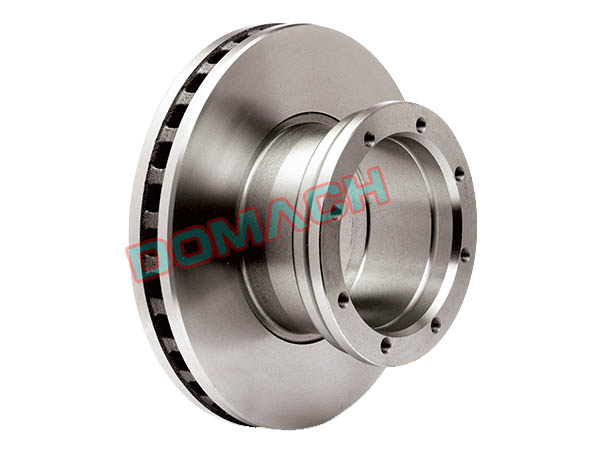

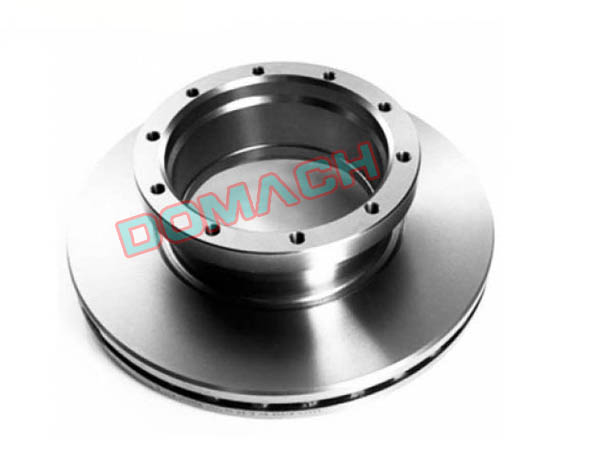

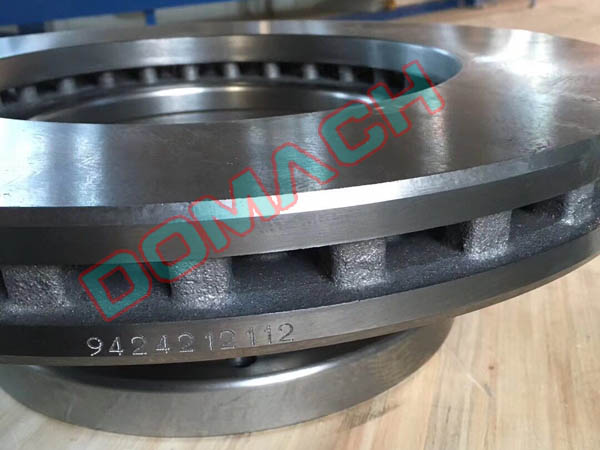

Actros brake disc 9424211212 9424212112 9424210912 9424230012 Fully Machined
Chemical Composition
Material C Si Mn S P Cr
HT250/G3000 3.10-3.55% 1.90-2.40% 0.50-0.90% 0.15% max. 0.15% max. 0.25% max.
Microstructure
Graphite Structure: Predominately Type A, Size 3-5
Pearlite: 95% min. Ferrite: 5% max.
Mechanical Property
Hardness: 187 - 241 HB Tensile Strength: 220 Mpa (min.)
Machining Requirement
Runout: 0.05mm (max.) DTV: 0.127mm (max.)
Roughness: Ra 1.6μm (max.) Dynamic Balance:100% Balanced
