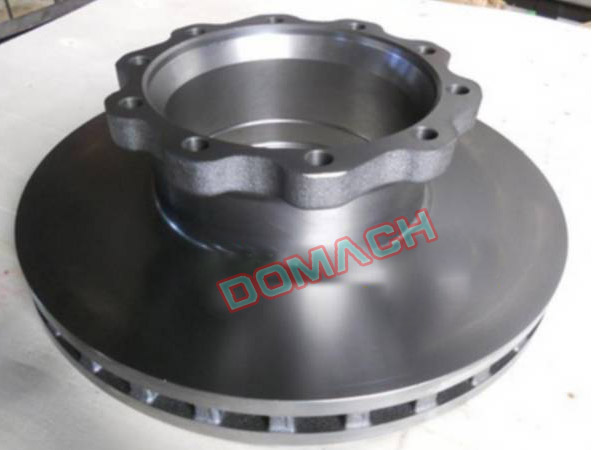

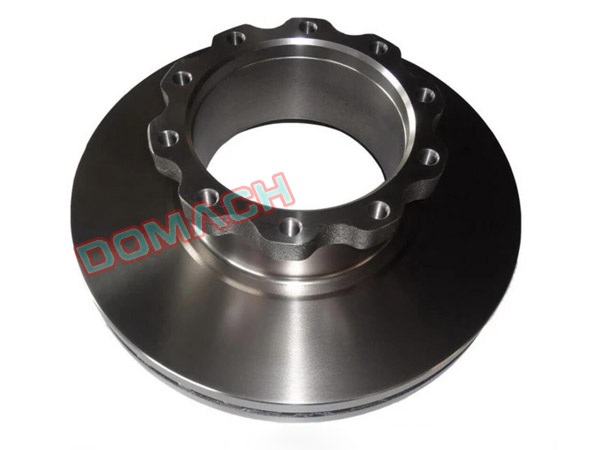

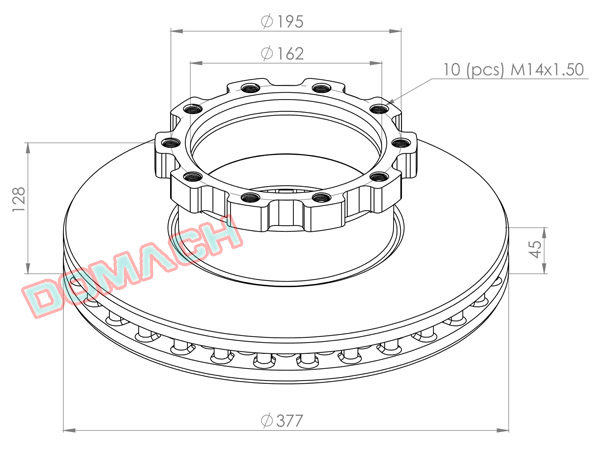

MAN – TGA,TGM,TGS,TGX BRAKE DISC 81508030020 81508030027 81508030057
Top rated MAN Trucks Brake Rotor(Disc)81508030020 81508030027 81508030057 is manufactured strictly according to the standard G3000(America)= GG25(European) = HT250(China).
Meet all OE specifications for weight, configuration,and tolenrances delivering the best perfomance in the market.
Chemical Composition
Material C Si Mn S P Cr
HT250/G3000 3.10-3.55% 1.90-2.40% 0.50-0.90% 0.15% max. 0.15% max. 0.25% max.
Microstructure
Graphite Structure: Predominately Type A, Size 3-5
Pearlite: 95% min. Ferrite: 5% max.
Mechanical Property
Hardness: 187 - 241 HB Tensile Strength: 220 Mpa (min.)
Machining Requirement
Runout: 0.05mm (max.) DTV: 0.127mm (max.)
Roughness: Ra 1.6μm (max.) Dynamic Balance:100% Balanced
